The field data example shown in Figures 9-11 aims to further verify the feasibility and applicability of the proposed package. Velocity and models are presented in Figure 9, which were obtained by migration velocity analysis (Sava and Vlad, 2008) and tomography (Shen and Zhu, 2015). The size of the model is 8.0 km 15.6 km with the spatial interval m. There are 77 shots horizontally distributed on the surface of the model. We perform time steps for each shot with the temporal interval s. In order to eliminate the diffraction artifacts from long offset, we set the stacking aperture of 2.0 km around the shot. Figure 10 shows the migrated image using conventional RTM without compensation (Figure 10a) and -RTM from real data (Figure 10b), respectively. For a clearer comparison, we display the zoomed in seismic images in Figure 11 corresponding to the marked area from Figure 10. From Figures 10a and 10b, one can conclude that the -compensated image using the proposed package exhibits sharper reflections and more balanced amplitude.
Fig9a_v,Fig9b_v

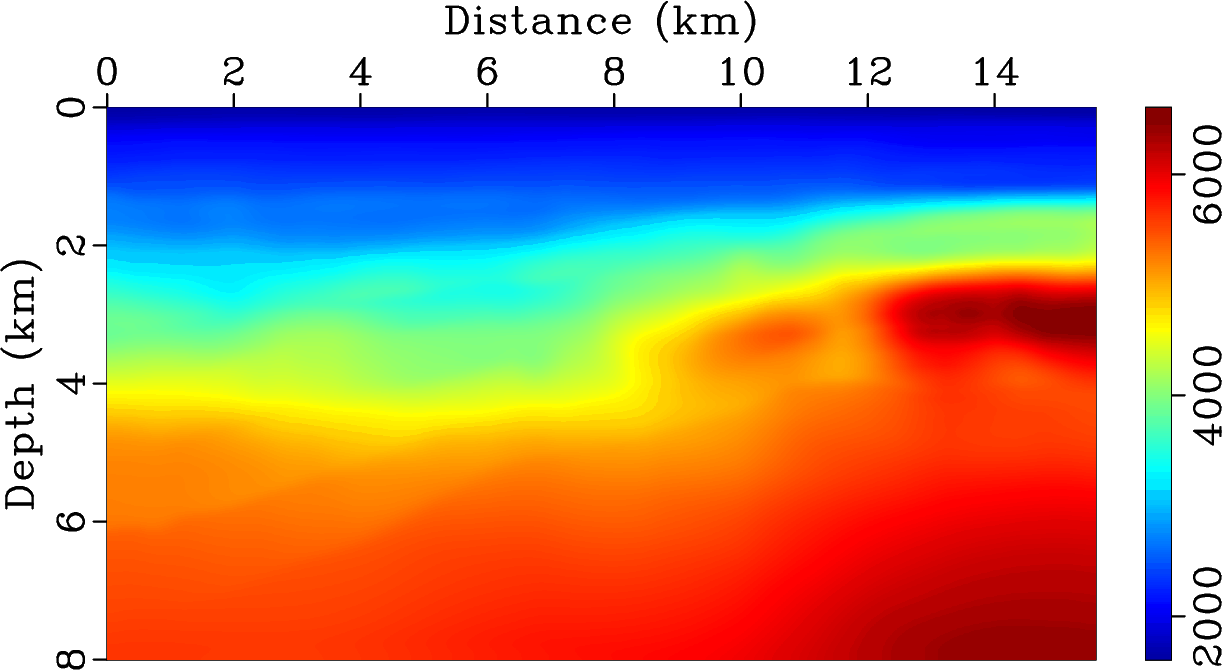

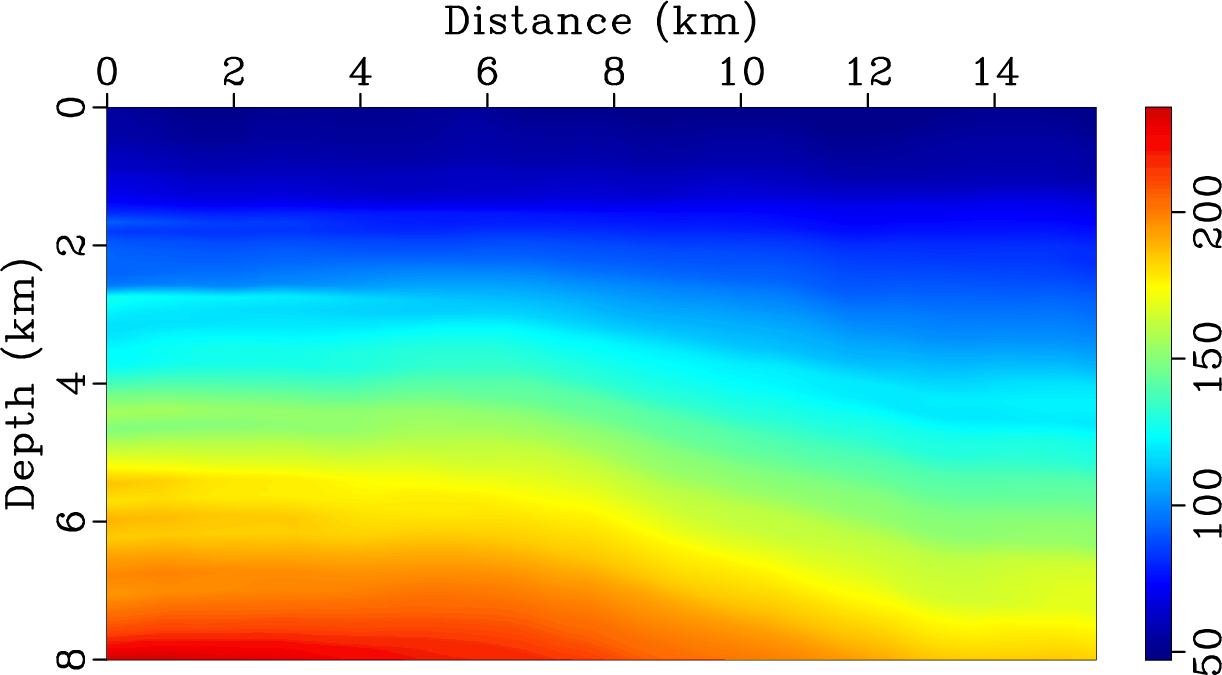

Figure 9. (a) Velocity and (b) models for field data. |
---|
Fig10a_v,Fig10b_v

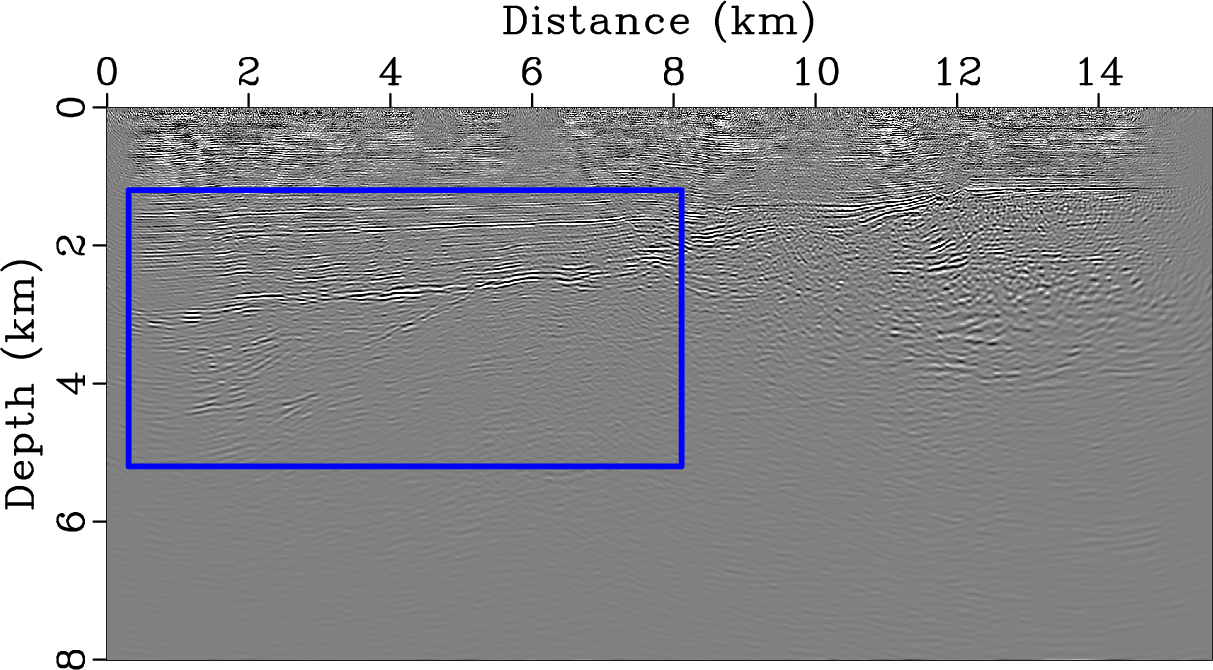

Figure 10. Migrated images of the field data using (a) conventional RTM from viscoacoustic media without compensation, (b) -RTM. |
---|
Fig11a_v,Fig11b_v

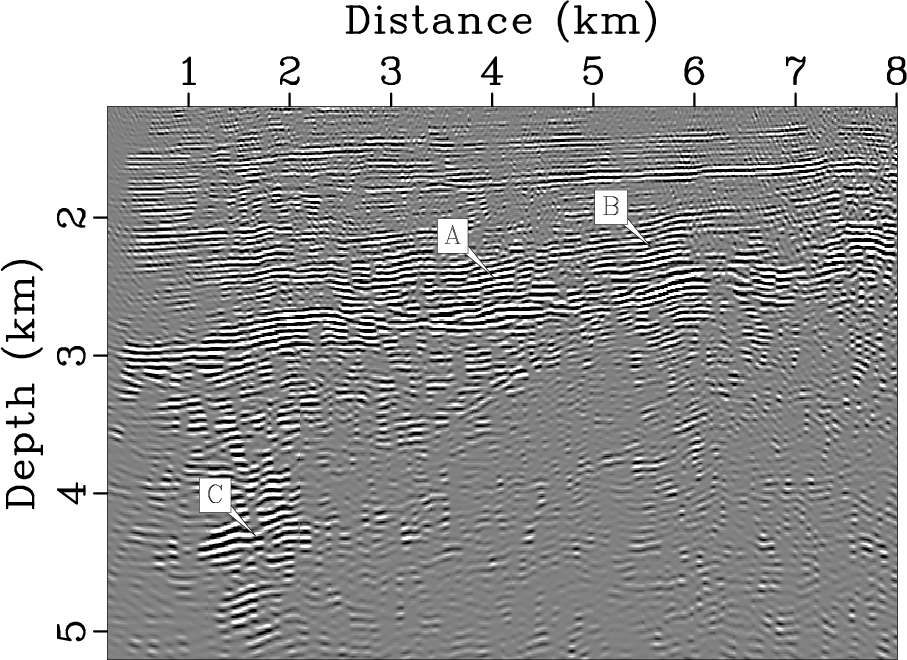

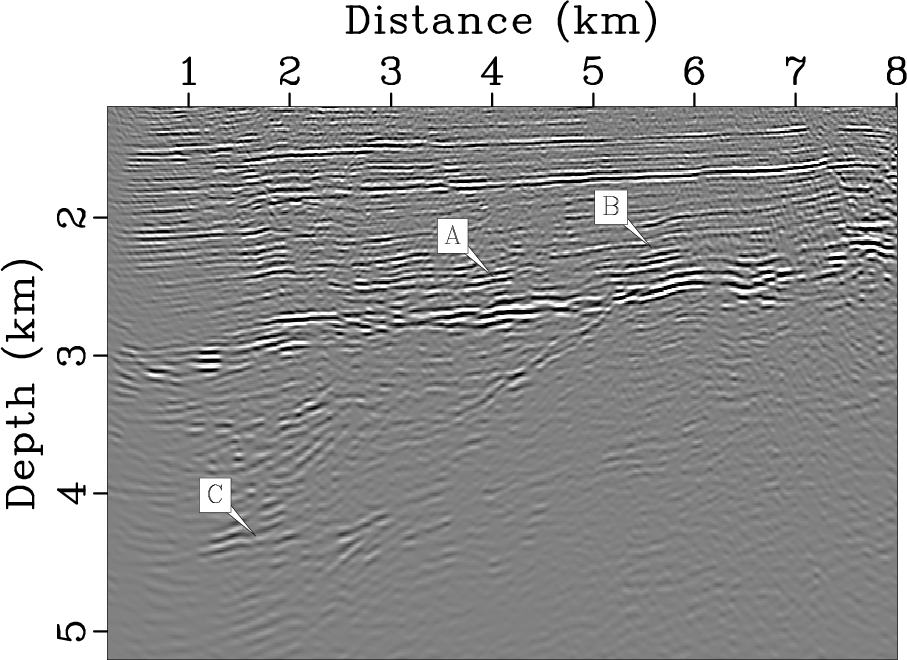

Figure 11. Zoom view of the images shown in the boxs in (a) Figure 10a and (b) Figure 10b. |
---|
