Abma decimated-trace interpolation tests

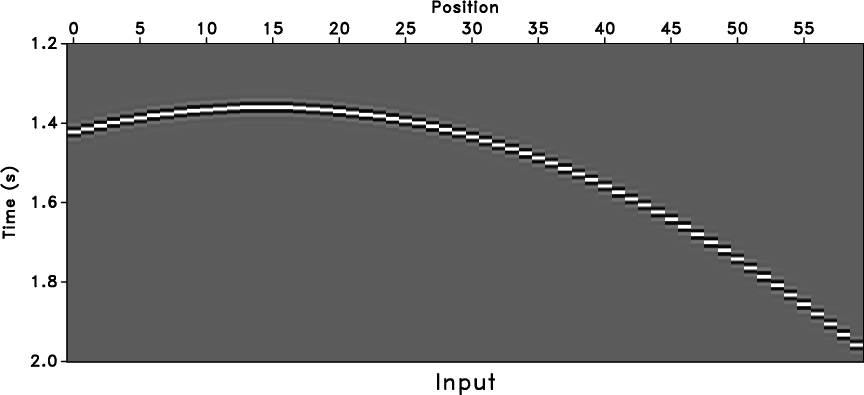

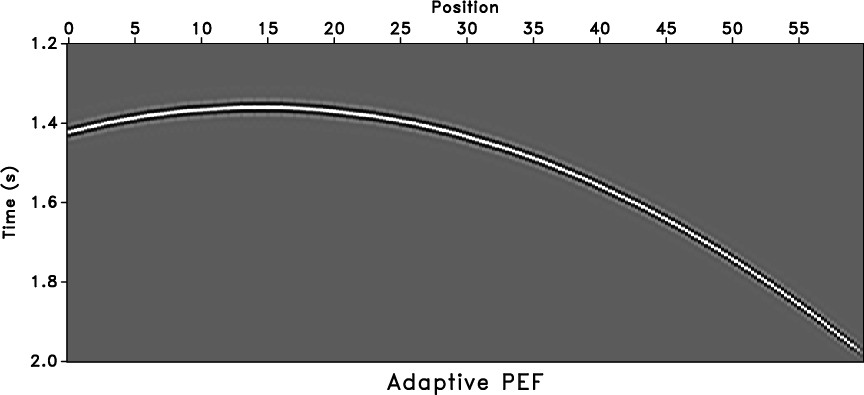

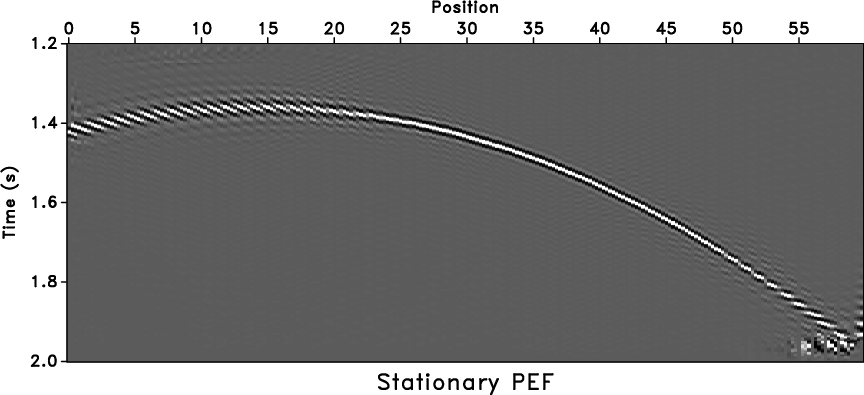

A benchmark example created by Raymond Abma (personal communication) shows a simple curved event (Figure 2a). The challenge in this example is to account for both nonstationarity and aliasing. Figure 2b shows the interpolated result using Claerbout's stationary $ t$ -$ x$ PEF, which was estimated and applied in one big window, with each PEF coefficient $ B_n$ constant at every data location. Note that the $ t$ -$ x$ PEF method can recover the aliasing trace only in the dominant slope range. The trace-interpolating result using regularized nonstationary autoregression is shown in Figure 2c. The adaptive PEF has 20 (time) $ \times $ 3 (space) coefficients for each sample and a 20-sample (time) $ \times $ 3-sample (space) smoothing radius. The proposed method eliminates all nonstationary aliasing and improves the continuity of the curved event.

jcurve jcscov jcacov
jcurve,jcscov,jcacov
Figure 2.
Curve model (a), trace interpolation with stationary PEF (b), and trace interpolation with adaptive PEF (c).
[pdf] [pdf] [pdf] [png] [png] [png] [scons]

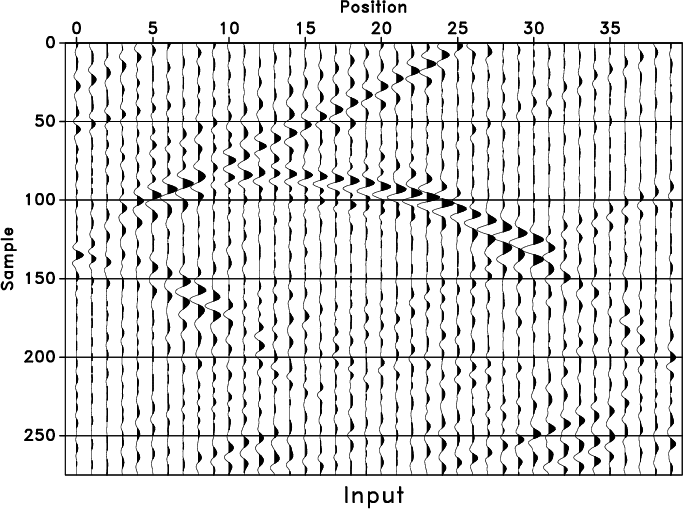

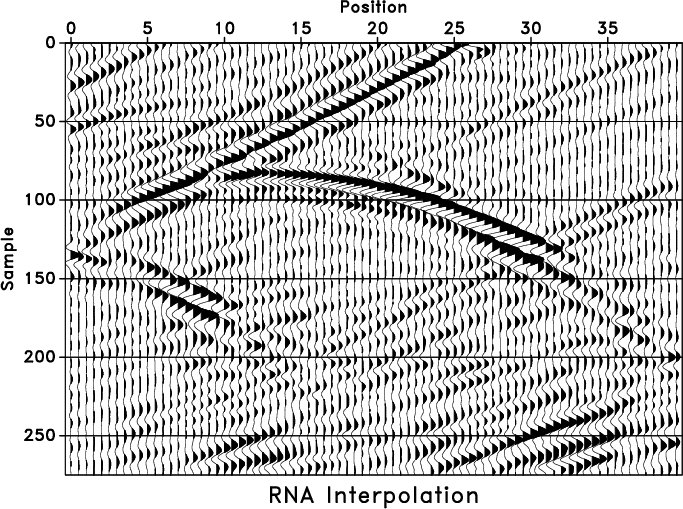

Abma and Kabir (2005) present a comparison of several algorithms used for trace interpolation. We chose the most challenging benchmark Marmousi example from Abma and Kabir to illustrate the performance of RNA interpolation. Figure 3a shows a zero-offset section of the Marmousi model, in which curved events violate the assumptions common for most trace-interpolating methods. Figure 3b shows that our method produces reasonable results for both curved and weak events and does not introduce any undesirable noise. The adaptive PEF parameters correspond to 7 (time) $ \times $ 5 (space) coefficients for each sample and a 40-sample (time) $ \times $ 30-sample (space) smoothing radius.

jmarm jmacov
jmarm,jmacov
Figure 3.
Marmousi model (a) and trace interpolation with regularized nonstationary autoregression (b).
[pdf] [pdf] [png] [png] [scons]
