Least-squares diffraction imaging using shaping regularization by anisotropic smoothing

Field Data Example II

The second field data example comes from the Cooper Basin onshore Western Australia. The dataset corresponds to stacked (with $25\times25$   m bin size) preprocessed data acquired as a 3D land seismic survey with fully azimuthal distribution of offsets and a far offset of $4000$   m . Preprocessing sequence includes noise attenuation, near-surface static corrections, despike, surface-consistent deconvolution, Q-compensation whitening and time-variant filter applied after stacking. The target horizon slice picked by the interpreter and used for the performance evaluation of the method corresponds to the interface between tight-gas sand and coals (Tyiasning et al., 2016). The depth of the interface is approximately $2500$   m . Structural complexity of the overburden can be characterized as high. Detailed geological description of the area as well as the comparison of diffraction imaging results to discontinuity-type attributes is given by Tyiasning et al. (2016). Here, we apply the developed approach to the dataset. Prestack time migration velocity is used for both full-wavefield migration and the proposed inversion approach for edge diffraction imaging.

Figure 11 shows a stacked volume of the dataset. We focus on the window around the target horizon, which on average corresponds to $1.72$   s TWTT. Figure 12a shows conventional image of the target horizon slice generated with 3D post-stack time Kirchhoff migration. We then apply reflection removal procedure to the stack (Figure 11), migrate it, and generate the image shown in Figure 12b. Smaller scale features become highlighted, e.g., faults between $8-10$   km inlines and $0-4$   km crosslines. Acquisition footprint is noticeable on both of the images (Figure 12) and corresponds to the low-amplitude events aligned in a grid-like fashion (easy to notice between inlines $0-2$   km and crosslines $6-8$   km ). We apply the developed workflow to further highlight and denoise diffractions.

stack-barrolka

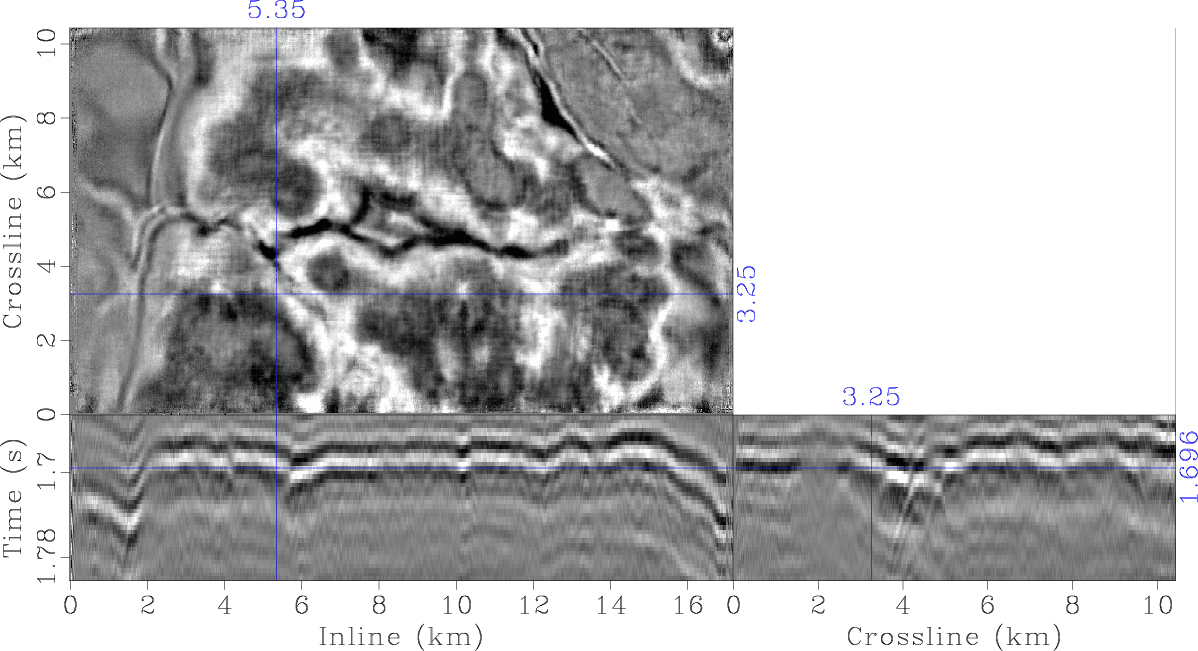

Figure 11. 3D sesimic dataset from the Cooper Basin onshore Western Australia: stacked volume.

mig3-ts,xspr-mig3-ts

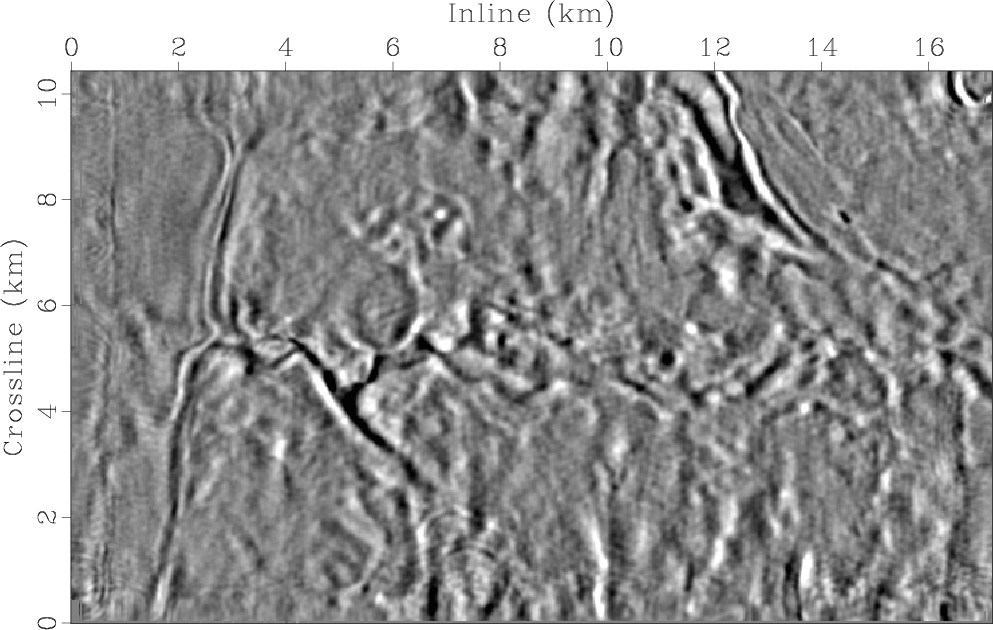

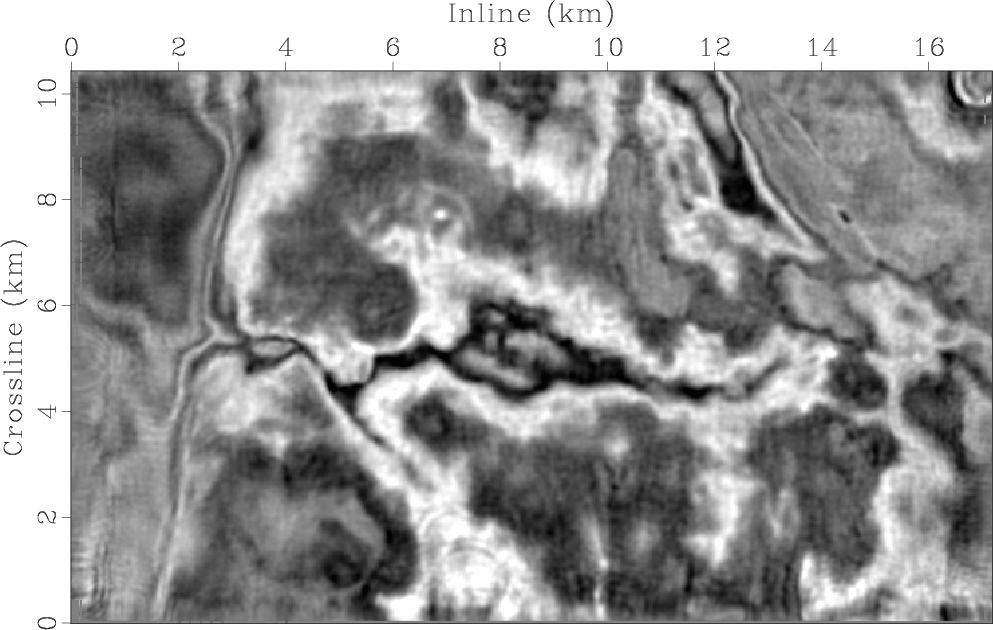

Figure 12. Target horizon slice (the interface between tight-gas sand and coals picked by the interpreter ( $\sim 1.72$   s TWTT)): (a) 3D post-stack Kirchhoff migration of the stack shown in Figure 11; (b) 3D post-stack Kirchhoff migration of the stack after AzPWD. Subsurface discontinuities appear to be highlighted in (b) in comparison to (a), in which they are masked by specular energy. At the same time, diffraction image (b) still has some noise present.

First, we generate the data to be fit by the inversion - the stack weighted by a path-summation integral after reflection elimination (Figure 13a). We run twenty outer and two inner iterations and use $\lambda=4$ , $\epsilon=10$ , $N=20$ and $K=1$ . As in the previous data example we use a low number of internal iterations to avoid noise fitting in general and footprint in particular. The inversion result along the target horizon is shown in Figure 13b. 3D cubes of the migrated stack, the migrated stack after reflection elimination and the inversion result are shown in Figures 14, 15 and 16. Edges masked by the specular energy on the full-wavefield image (Figure 14), are highlighted on the image after reflection elimination (Figure 15). At the same time, edge diffractions produced by the inversion (Figure 16) appear to be clearer and have higher signal-to-noise ratio.

Further, we apply Kirchhoff modeling to the inversion result (Figures 13b and 16), restore diffractions (Figure 17), and subtract the result from the stack after reflection elimination (Figure 18). The result of subtraction shown in Figure 19 can be treated as noise eliminated during the inversion. Signal and noise orthogonalization (Chen and Fomel, 2015) is applied to account for aperture difference between observed and restored diffractions (for instance, often only a single diffraction flank can be observed in the data leading to spuriously high difference or the ``noise estimate") and to bring back some of the energy accidentally leaked to the noise domain.

The acquisition footprint evident in Figure 19 suggests the high performance of the method. Improvement can be noticed between $6-10$   km inlines and $2-4$   km crosslines associated with the extraction of small-scale discontinuities. Compare the inversion result Figure 13b and the result of migration shown in Figure 12b. Same subtle events are located at crossline $3.25$   km between inlines $7-9$   km (Figures 17 and 18) and have a clear hyperbolic shape (Figure 17), which appears when edge diffractions are observed perpendicular to edges. Good restoration quality can also be inferred from the ``circular" structure between $6-8$   km inlines and $0-2$   km crosslines. Both of these areas have high similarity between the initial diffraction stack (Figure 18) and the stack with diffractions ``restored" and denoised by inversion (Figure 17) leading to low amplitudes in the difference section (Figure 19) primarily associated with noise. These features also follow ``frowning"-focusing-``smiling" behaviour under migration velocity perturbation supporting their diffraction nature in the plane perpendicular to the edge.

linpi-data-ts,modl-test-ts

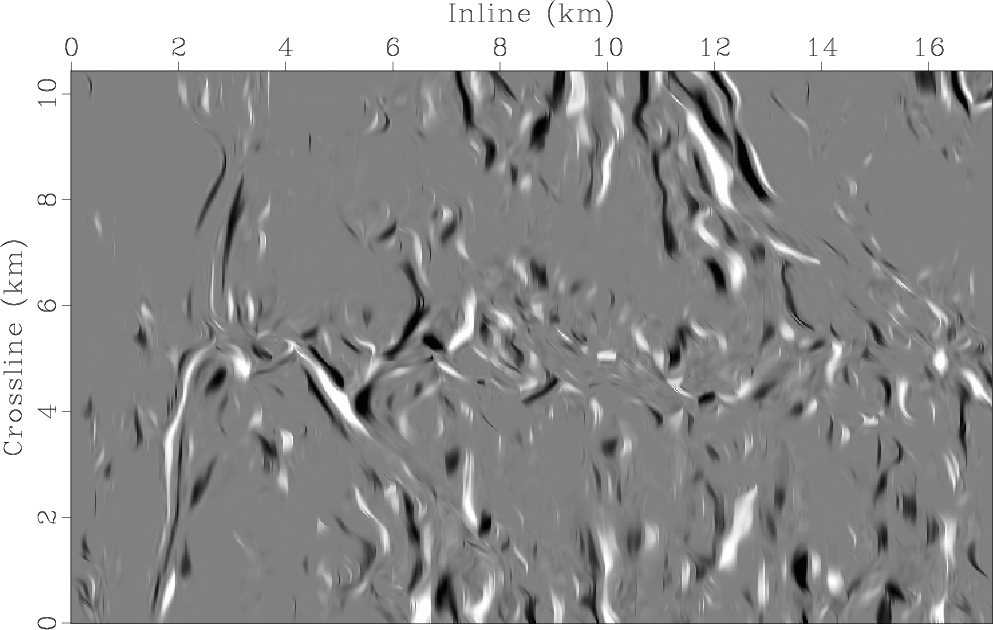

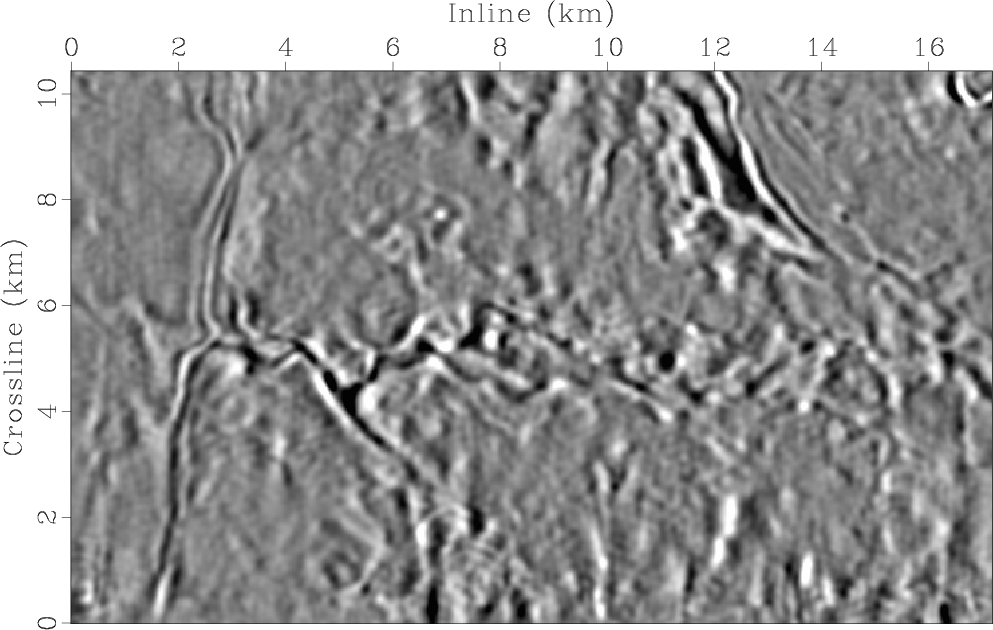

Figure 13. Target horizon slice (the interface between tight-gas sand and coals picked by the interpreter ( $\sim 1.72$   s TWTT)): (a) observed data (Figure 11) preconditioned by AzPWD and path-summation integral migration; (b) inversion result: edge diffractions have been denoised (compare with Figure 12b).

mig3-barrolka

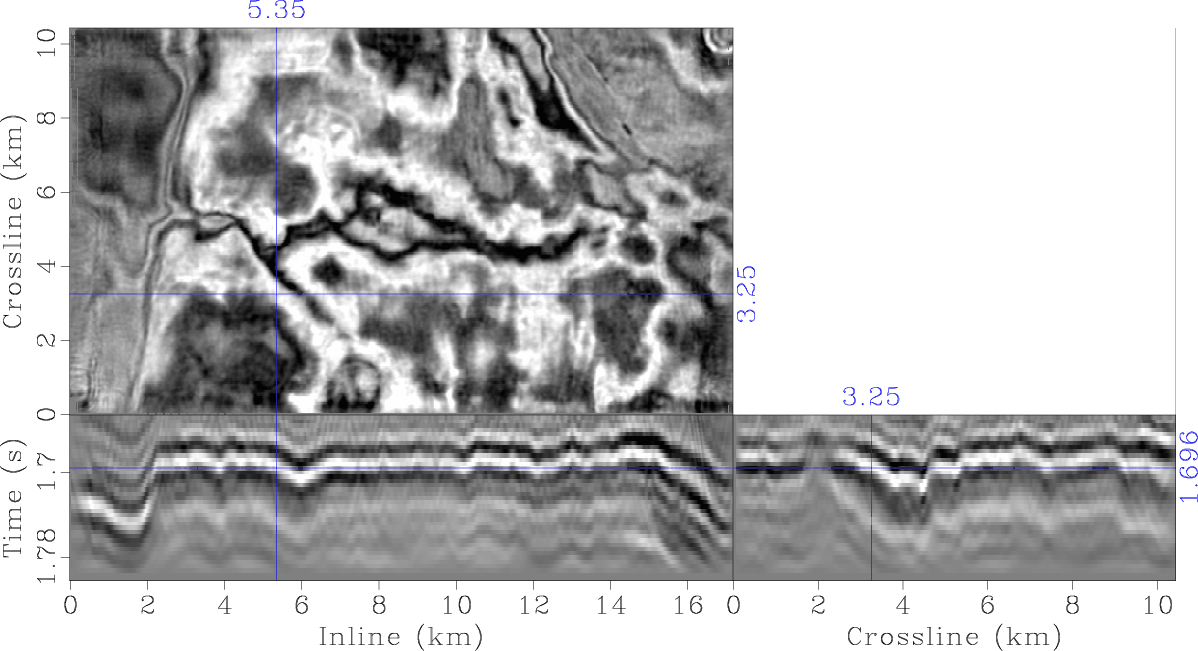

Figure 14. 3D post-stack Kirchhoff migration of the stack shown in Figure 11.

xspr-mig3-barrolka
Figure 15. 3D post-stack Kirchhoff migration of the stack (Figure 11) after reflection elimination and edge diffraction extraction with AzPWD. Subsurface discontinuities appear to be highlighted in comparison to Figure 14, in which they are masked by specular energy. At the same time, diffraction image still has some noise present.

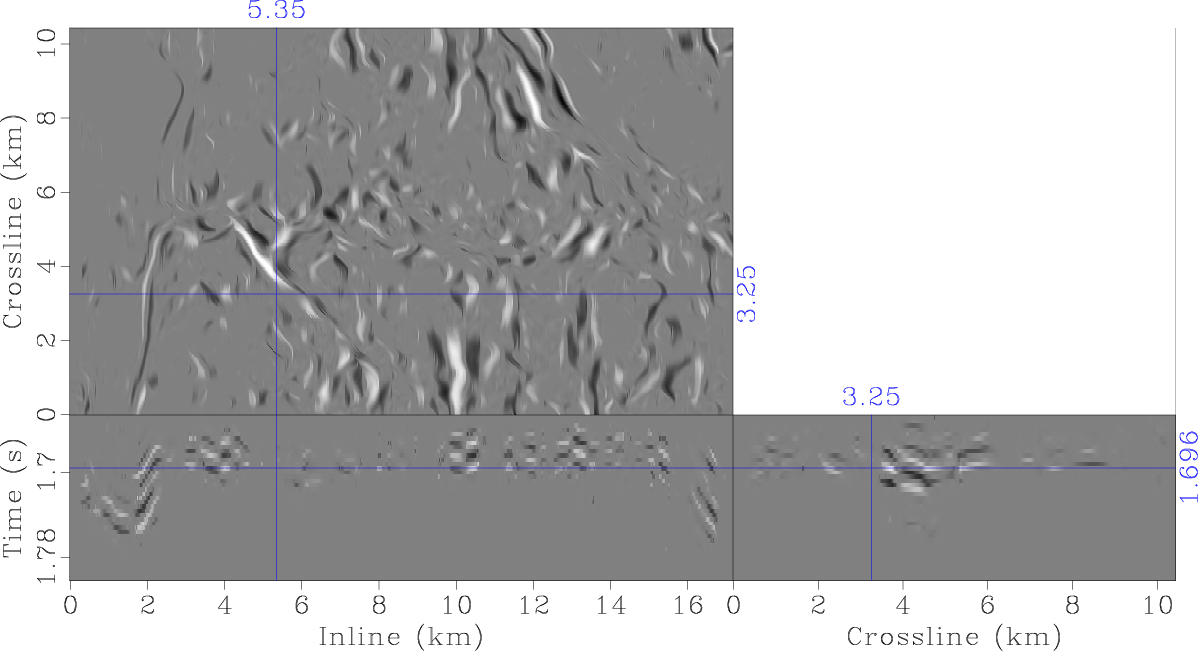

modl-test
Figure 16. Inversion result. Edge diffractions are both highlighted and denoised (compare with Figure 15).

diffractions-ortho-barrolka

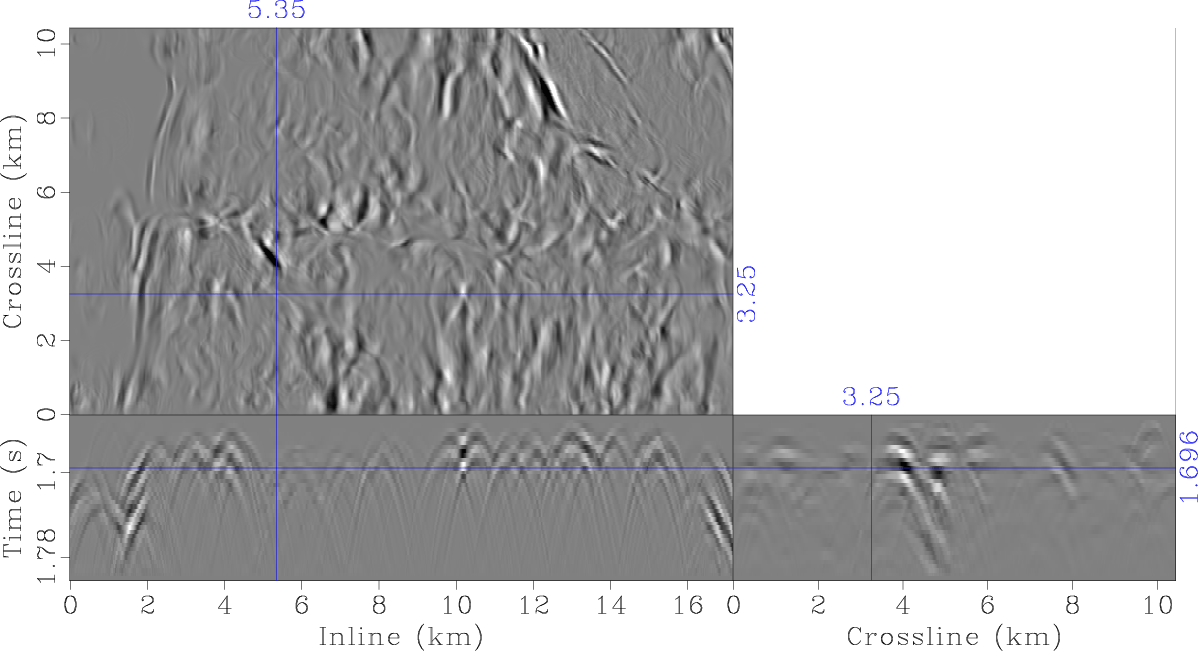

Figure 17. Kirchhoff modeling of diffractivity from Figure 16. ``Clean'' diffraction signatures are recovered: notice hyperbolic shapes when edge diffractions are observed perpendicular to edges.

xspr-notmig-barrolka
Figure 18. Stack with reflections removed. The majority of reflections is removed, some hyperbolic signatures can be seen (compare with Figures 11 and 17). Reflection remainders and noise including acquisition footprint are apparent (compare with Figure 17).

noise-ortho-barrolka

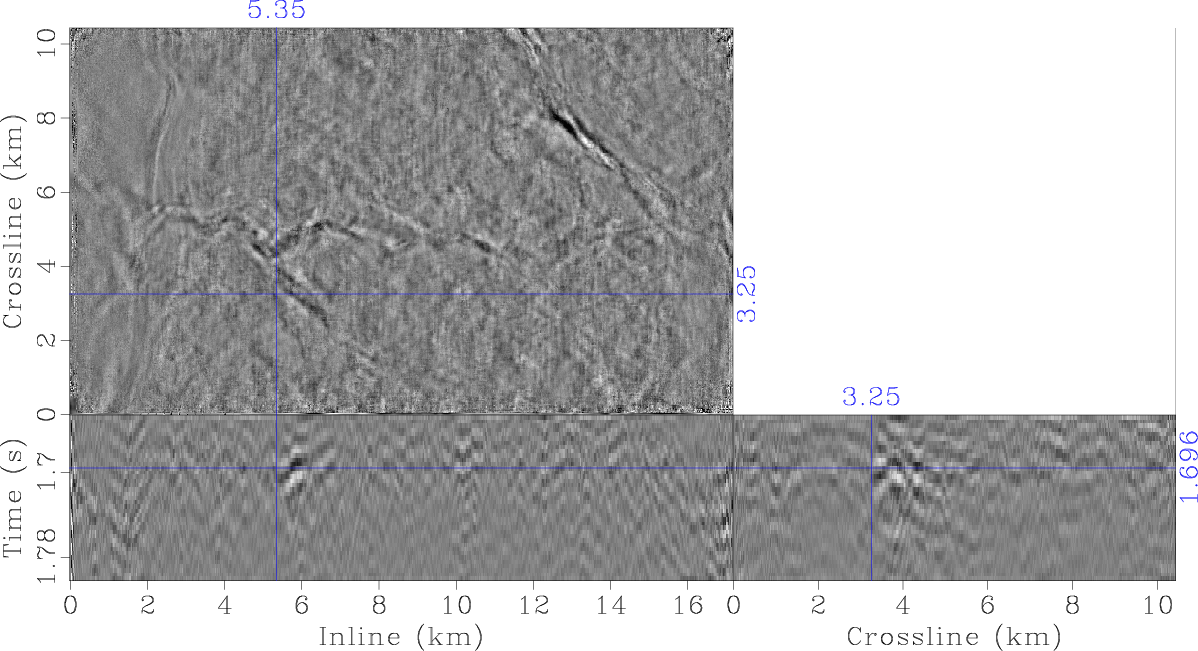

Figure 19. Difference between Figures 17 and 18 is predominated by noise and thus supports the validity of denoised edge diffractions (Figure 17).

Some features are lost in the area between $10-11$   km inlines and $6-8$   km crosslines. Event between inlines $12-14$   km and crosslines $6-8$   km is not predicted (Figure 19). High magnitude events observed between inlines $1-3$   km at crossline $3.25$   km and between crosslines $4-5$   km at inline $5.35$   km (Figure 16 and 17) can be associated with reflections leaked to the diffraction image domain or can actually be edge diffractions observed in the plane not perpendicular to the edge and thus having elongated signature. The event located at crossline $3.25$   km between inlines $5-7$   km inversion interprets as a reflection and removes it from the diffraction imaging result (Figure 16 and 17). High difference values following the channel in the difference cube (Figure 19) can also be associated with the reflection remainders removed from the diffraction image domain.

It should be mentioned that the target horizon has a highly oscillating pattern including a high magnitude drop in the left part of the cube (inlines $1-3$   km ) making dip estimation for ``ideal" reflection-diffraction separation simultaneously for the whole area challenging. More careful dip estimation possibly with different parameters in different regions of the dataset should further improve the result. Inversion parameters can definitely be tweaked to improve the results but even with these trial values the majority of the edges including some subtle features (e.g., events at crossline $3.25$   km between inlines $7-9$   km (Figure 16)) hardly noticeable on the migrated stack after reflection elimination (Figure 15) has been extracted and highlighted.
