As it can be seen in Fig. 4, the impulse response of
the AMO computed in the log-stretch, frequency-wavenumber domain has
some artifacts: high amplitude, large saddle corners. Low temporal
frequencies and high spatial slopes are also present. These artifacts can be eliminated easily
using a f-k filter, which is described below.
|
---|
impresp2
Figure 4. AMO impulse response artifacts
|
---|
|
---|
Suppose we want to attenuate all spatial frequencies that are larger than a certain threshold , where
|
(10) |
with , and being the coordinates in the frequency-wavenumber domain (without logstretch), and being the minimum apparent velocity of the events that we want the filtered data cube to contain. Thus, the data cube will become:
|
(11) |
Too small an will result in an abrupt transition in the f-k domain, and thus ringing artifacts in the t-x domain. An which is too big will result in no visible filtering of the targeted artifacts. Moreover, depends on the choice of units and the number of samples for the and axes: since the exponential needs to be dimensionless, we have
where
Thus, the final expression of is
|
(12) |
where
is a value that is hand-picked only once, and embedded in the code. This way, we will not have to change anything at all in the code or in the parameters in order to set
, no matter what the units of the data cube may be.
The result of the filtering can be seen in Fig. 5:
the slices through the cube are taken at exactly the same locations as
those in Fig. 4, but now the artefacts are gone.
|
---|

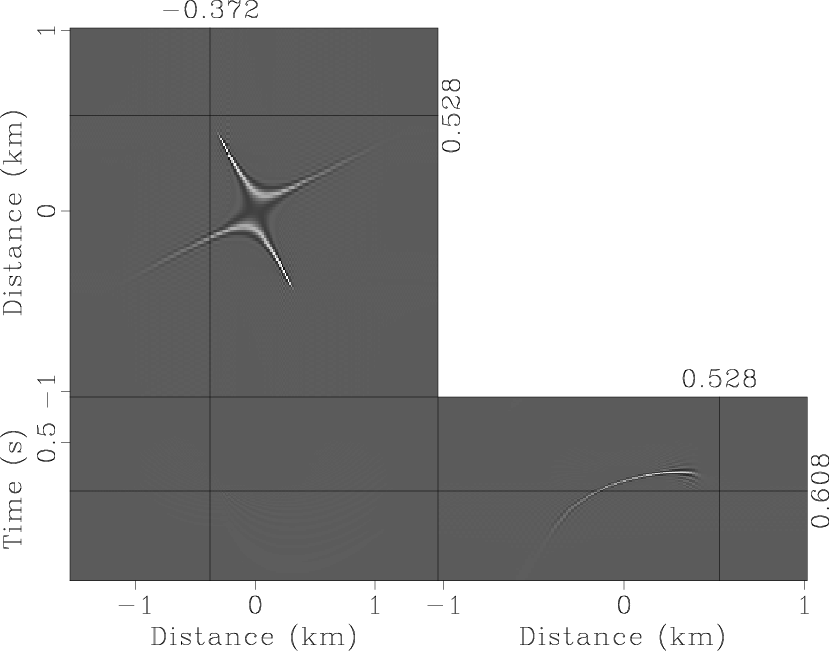

fkfilter
Figure 5. AMO impulse response after f-k filtering
|
---|
|
---|
|
|
|
