Post stack Kirchhoff Migration and Least Squares Kirchhoff Migration

The stack and RMS velocity were input to sfkirchnew to apply post-stack Kirchhoff migration (Figure 7). Least squares Kirchhoff migration was computed using the sfkirchinvs program (Figure 8).

These processing can be reproduced with the command:

scons ktmig.view invsparse.view

ktmig

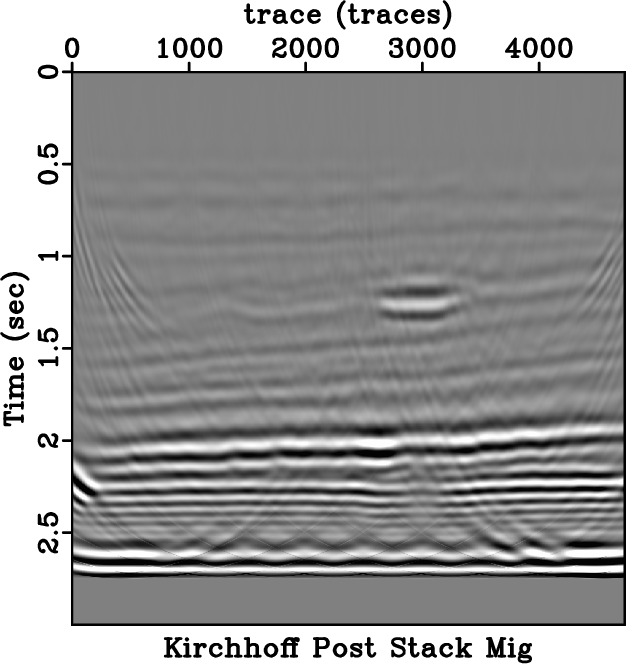

Figure 7. Post stack Kirchhoff migration.

invsparse

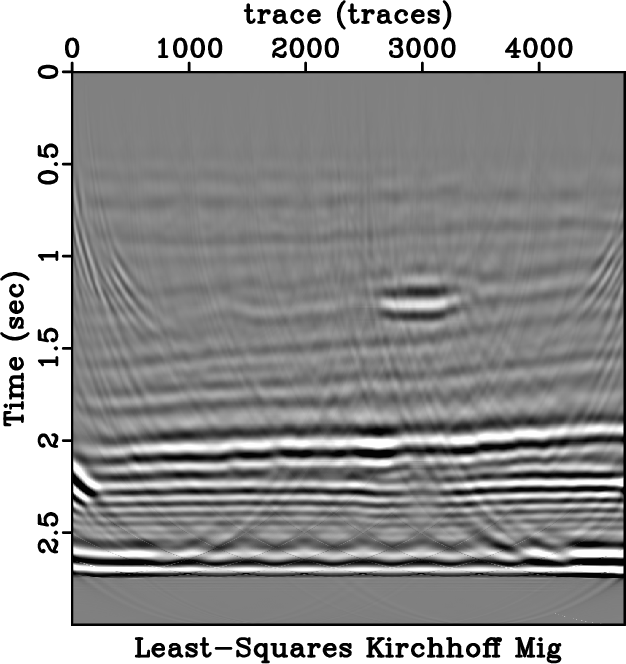

Figure 8. Least squares Kirchhoff migration.
