Interferometric imaging condition for wave-equation migration

Conventional imaging condition

Let $D\left ( { \mathbf{x} } , { t } \right)$ be the data recorded at time ${ t }$ at receivers located at coordinates ${ \mathbf{x} }$ for a seismic experiment with buried sources (Figure 1(a)) also known as an exploding reflector seismic experiment (Loewenthal et al., 1976). A conventional imaging procedure for this type of data consists of two steps (Claerbout, 1985): wavefield reconstruction at image coordinates ${ \mathbf{y} }$ from data recorded at receiver coordinates ${ \mathbf{x} }$, followed by an imaging condition taking the reconstructed wavefield at time ${ t } =0$ as the seismic image.

parray,aarray
Figure 1. Zero-offset seismic experiment sketch (a) and multi-offset seismic experiment sketch (b). Coordinates ${ \mathbf{x} } =\{x,y\}$ characterize receiver positions on the surface and coordinates ${ \mathbf{y} } =\{x,y,z\}$ characterize reflector positions in the subsurface.

Mathematically, we can represent the wavefield $V$ reconstructed at coordinates ${ \mathbf{y} }$ from data $D$ recorded at coordinates ${ \mathbf{x} }$ as a temporal convolution of the recorded trace with the Green's function $G$ connecting the two points:

$$V\left ( { \mathbf{x} } , { \mathbf{y} } , { t } \right) = D... ... G\left ( { \mathbf{x} } , { \mathbf{y} } , { t } \right) \;.$$ (1)

The total wavefield $U$ reconstructed at ${ \mathbf{y} }$ from all receivers is the superposition of the wavefields $V$ reconstructed from individual traces

$$U\left ( { \mathbf{y} } , { t } \right) = {\int\limits_ { \m... ...}V\left ( { \mathbf{x} } , { \mathbf{y} } , { t } \right) \;,$$ (2)

where the integral over ${ \mathbf{x} }$ spans the entire receiver space. As stated, the imaging condition extracts the image $R_{} \left ( { \mathbf{y} } \right)$ from the wavefield $U\left ( { \mathbf{y} } , { t } \right)$ at time ${ t } =0$, i.e.

$$R_{} \left ( { \mathbf{y} } \right) = U\left ( { \mathbf{y} } , { t } =0 \right) \;.$$ (3)

The Green's function used in the procedure described by equation 1 can be implemented in different ways. For our purposes, the actual method used for computing Green's functions is not relevant. Any procedure can be used, although different procedures will be appropriate in different situations, with different cost of implementation. We assume that a satisfactory procedure exists and is appropriate for the respective velocity models used for the simulations. In our examples, we compute Green's functions with time-domain finite-difference solutions to the acoustic wave-equation, similar to reverse-time migration (Baysal et al., 1983).

pvo,xm

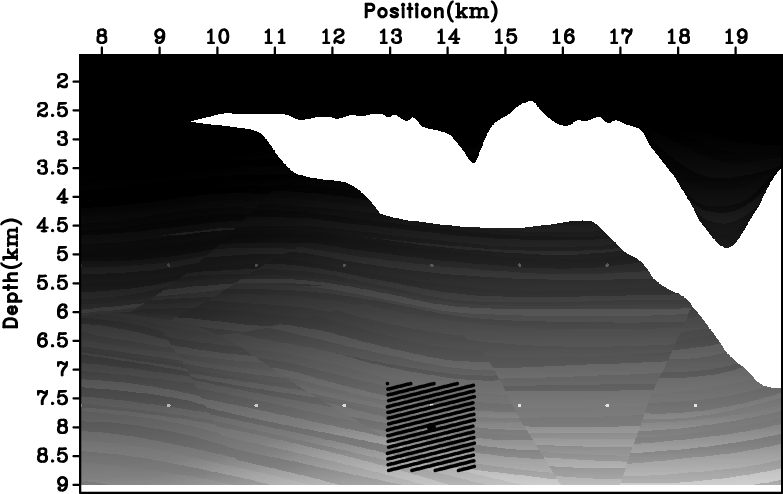

Figure 2. Velocity model (a) and imaging target located around $z=8$ km (b). The shaded area is imaged in Figures 6(a)-6(d).

pwo-0,pwv-0,pwo-7,pwv-7,pdo,pdv

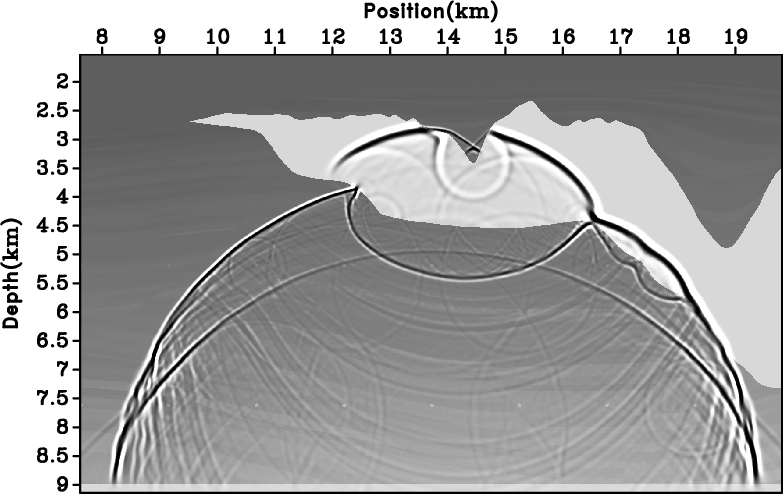

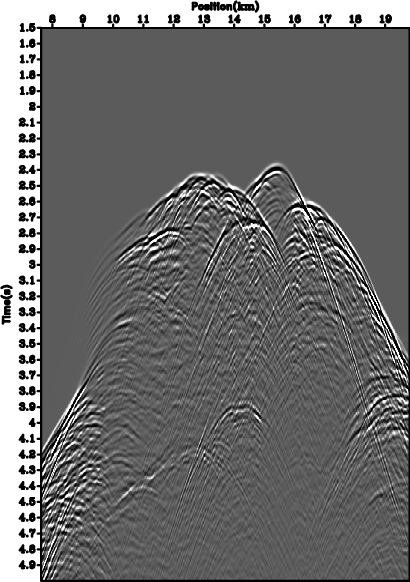

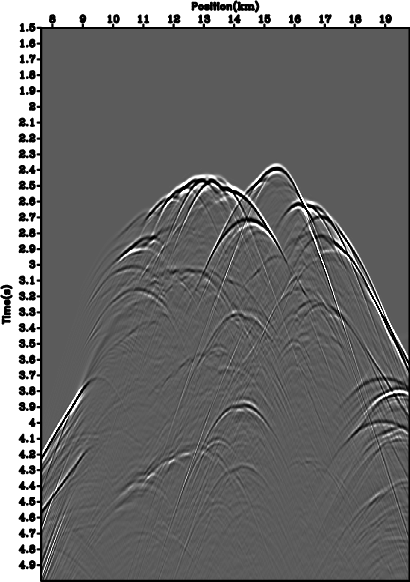

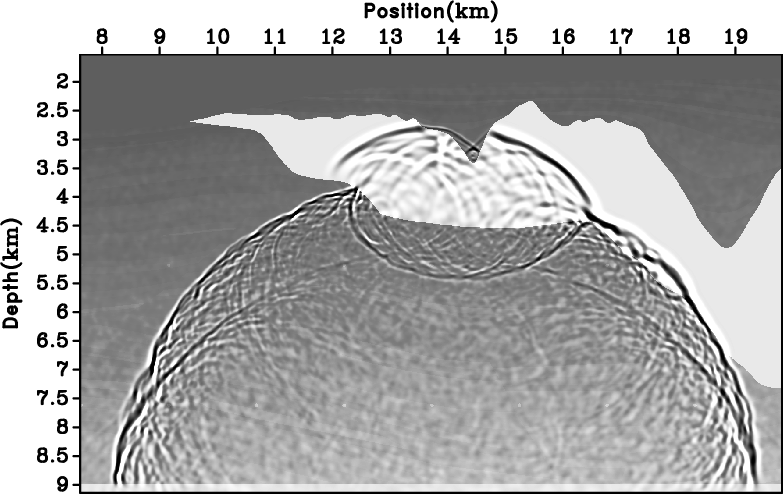

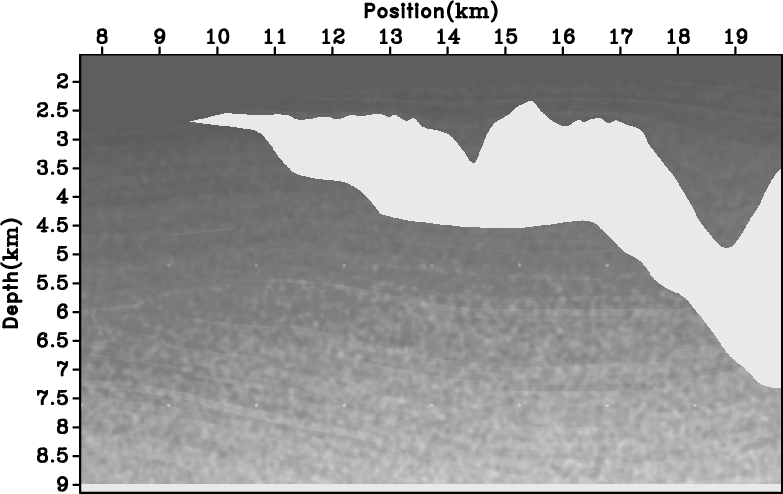

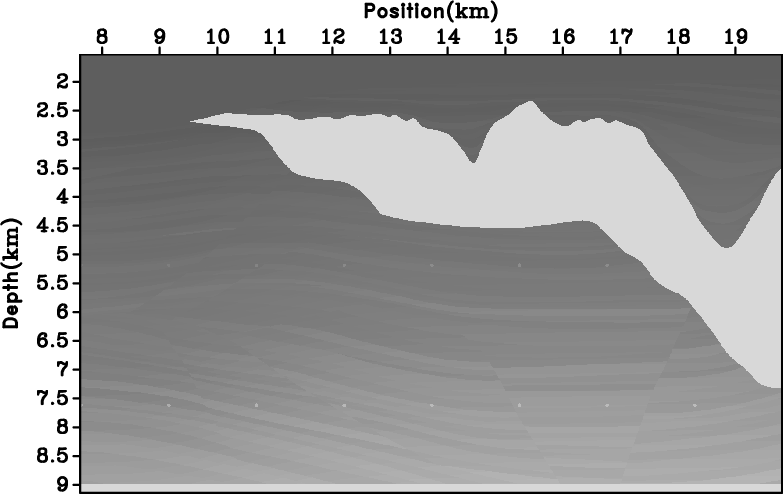

Figure 3. Seismic snapshots of acoustic wavefields simulated in the background velocity model (a)-(c), and in the random velocity model (b)-(d). Data recorded at the surface from simulation in the background velocity model (e) and from the simulation in the random velocity model (f).

Consider the velocity model depicted in Figure 2(a) and the imaging target depicted in Figure 2(b). We assume that the model with random fluctuations (Figure 3(b)) represents the real subsurface velocity and use this model to simulate data. We consider the background model (Figure 3(a)) to represent the migration velocity and use this model to migrate the data simulated in the random model. We consider one source located in the subsurface at coordinates $z=8$ km and $x=13.5$ km, and receivers located close to the top of the model at discrete horizontal positions and depth $z=0.0762$ km. Figure 3(c)-3(d) show snapshots of the simulated wavefields at a later time. The panels on the left correspond to modeling in the background model, while the panels on the right correspond to modeling in the random model.

Figure 3(f) shows the data recorded on the surface. The direct wavefield arrival from the seismic source is easily identified in the data, although the wavefronts are distorted by the random perturbations in the medium. For comparison, Figure 3(e) shows data simulated in the background model, which do not show random fluctuations.

Conventional imaging using the procedure described above implicitly states that data generated in the random model, Figure 3(b), are processed as if they were generated in the background model, Figure 3(a). Thus, the random phase variations in the data are not properly compensated during the imaging procedure causing artifacts in the image. Figure 6(b) shows the image obtained by migrating data from Figure 3(f) using the model from Figure 3(a). For comparison, Figure 6(a) shows the image obtained by migrating the data from Figure 3(e) using the same model from Figure 3(a).

Ignoring aperture effects, the artifacts observed in the images are caused only by the fact that the velocity models used for modeling and migration are not the same. Small artifacts caused by truncation of the data on the acquisition surface can also be observed, but those artifacts are well-known (i.e. truncation butterflies) and are not the subject of our analysis. In this example, the wavefield reconstruction procedure is the same for both modeling and migration (i.e. time-domain finite-difference solution to the acoustic wave-equation), thus it is not causing artifacts in the image. We can conclude that the migration artifacts are simply due to the phase errors between the Green's functions used for modeling (with the random velocity) and the Green's functions used for migration (with the background velocity). The main challenge for imaging in media with random variations is to design procedures that attenuate the random phase delays introduced in the recorded data by the unknown variations of the medium without damaging the real reflections present in the data.

The random phase fluctuations observed in recorded data (Figure 3(f)) are preserved during wavefield reconstruction using the background velocity model. We can observe the randomness in the extrapolated wavefields in two ways, by reconstructing wavefields using individual data traces separately, or by reconstructing wavefields using all data traces at once.

The first option is to reconstruct the seismic wavefield at all image locations ${ \mathbf{y} }$ from individual receiver positions on the surface. Of course, this is not conventionally done in reverse-time imaging, but we describe this concept just for illustration purposes. Figure 4(a) shows the wavefield reconstructed separately from individual data traces depicted in Figure 3(f) using the background model depicted in Figure 3(b). In Figure 4(a), the horizontal axis corresponds to receiver positions on the surface, i.e. coordinates ${ \mathbf{x} }$, and the vertical axis represents time. According to the notations used in this paper, Figure 4(a) shows the wavefield $V\left ( { \mathbf{x} } , { \mathbf{y} } , { t } \right)$ reconstructed to a particular image coordinate ${ \mathbf{y} }$ from separate traces located on the surface at coordinates ${ \mathbf{x} }$. A similar plot can be constructed for all other image locations. Ideally, the reconstructed wavefield should line-up at time ${ t } =0$, but this is not what we observe in this figure, indicating that the input data contain random phase delays that are not compensated during wavefield reconstruction using the background velocity.

The second option is to reconstruct the seismic wavefield at all image locations ${ \mathbf{y} }$ from all receiver positions on the surface at once. This is a conventional procedure for reverse-time imaging. Figure 5(a) shows the wavefield reconstructed from all data traces depicted in Figure 3(f) using the background model depicted in Figure 3(b). In Figure 5(a), the vertical and horizontal axes correspond to depth and horizontal positions around the source, i.e. coordinates ${ \mathbf{y} }$, and the third cube axis represents time. According to the notations used in this paper, Figure 5(a) corresponds to wavefield $U\left ( { \mathbf{y} } , { t } \right)$ reconstructed from data at all receiver coordinates ${ \mathbf{x} }$ to image coordinates ${ \mathbf{y} }$. The reconstructed wavefield does not focus completely at the image coordinate and time ${ t } =0$ indicating that the input data contains random phase delays that are not compensated during wavefield reconstruction using the background velocity.
