We first test the proposed method using a synthetic model with known analytical time-to-depth conversion solutions. In this model, the exact velocity squared is given by
model-slow

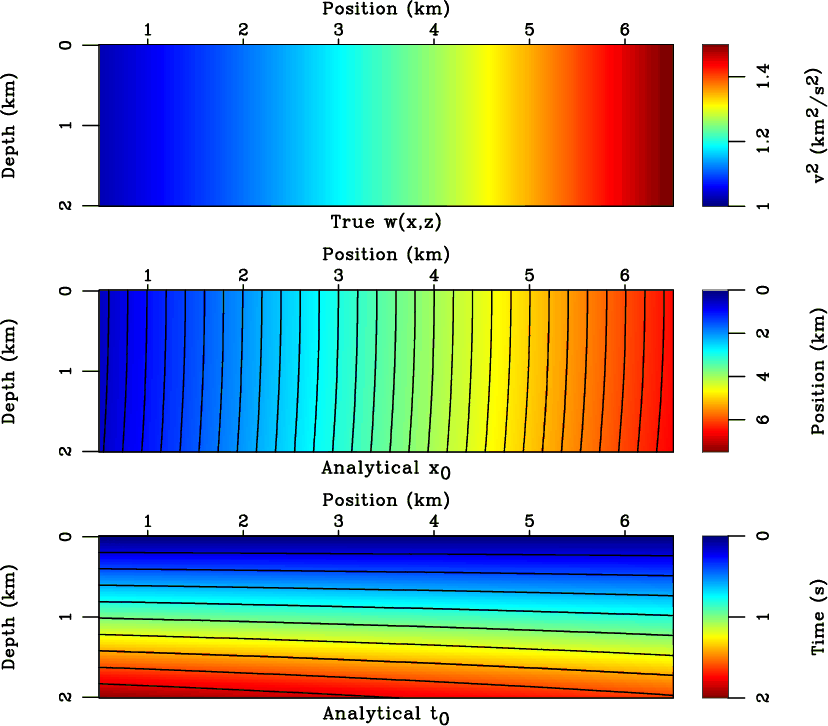

Figure 3. The true velocity squared (top) of the linear sloth model (equation 22). Analytical (middle) is overlaid by image rays. Analytical (bottom) is overlaid by contours showing propagating image wavefront. |
---|
input-slow

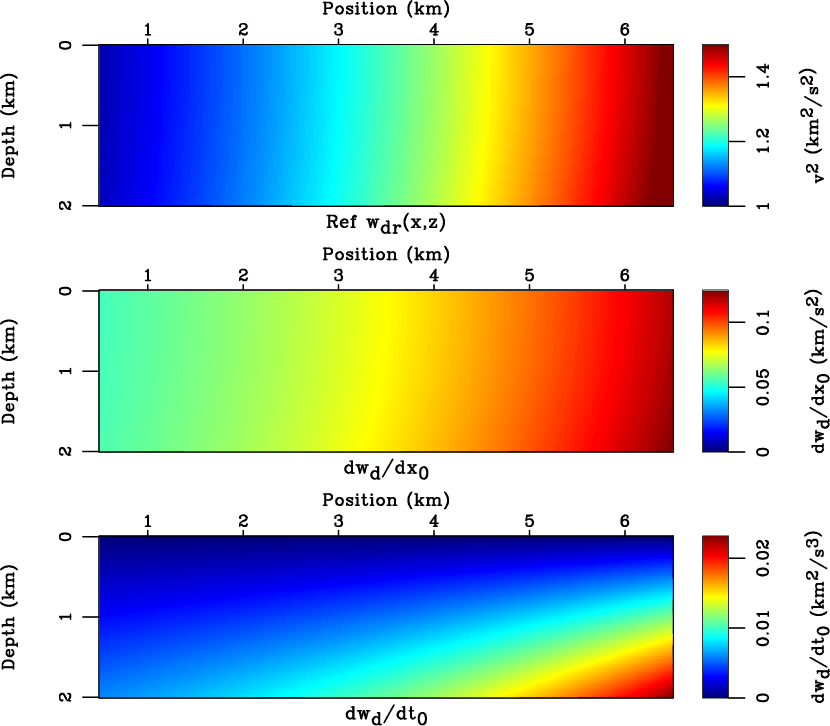

Figure 4. Inputs of the proposed time-to-depth conversion for the linear gradient model. The last input (not shown here) is taken to be the central trace of (top) in this case. |
---|
estcompare-slow
Figure 5. The estimated values of , , in the linear sloth model (equation 22). |
---|
errcompare-slow

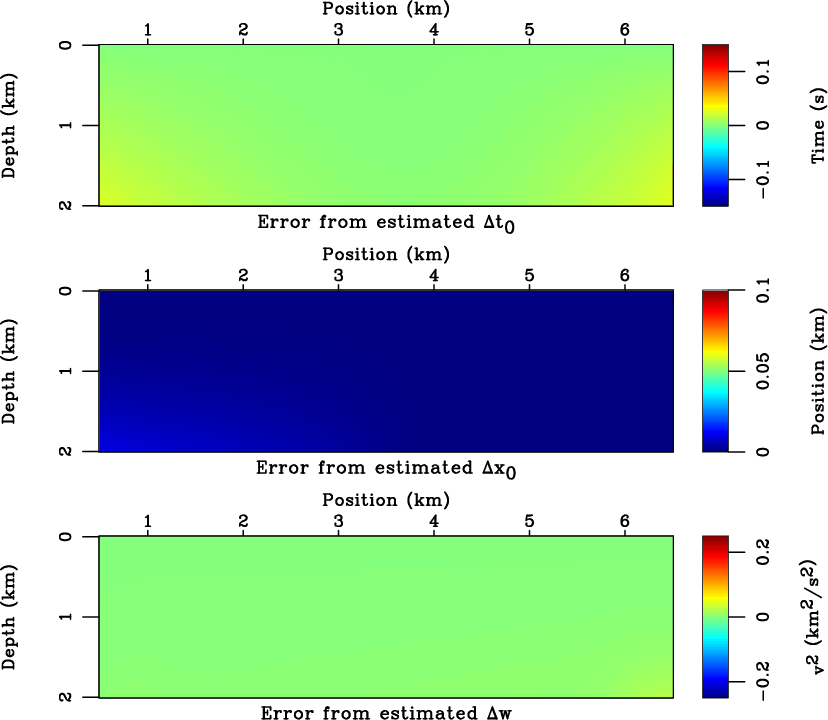

Figure 6. The errors of the estimated values of , , in comparison with the true values in the linear sloth model (equation 22). The errors are small for all estimated parameters indicating a good accuracy of the proposed method. |
---|
