Experiment setup

init shot15
init,shot15
Figure 2.

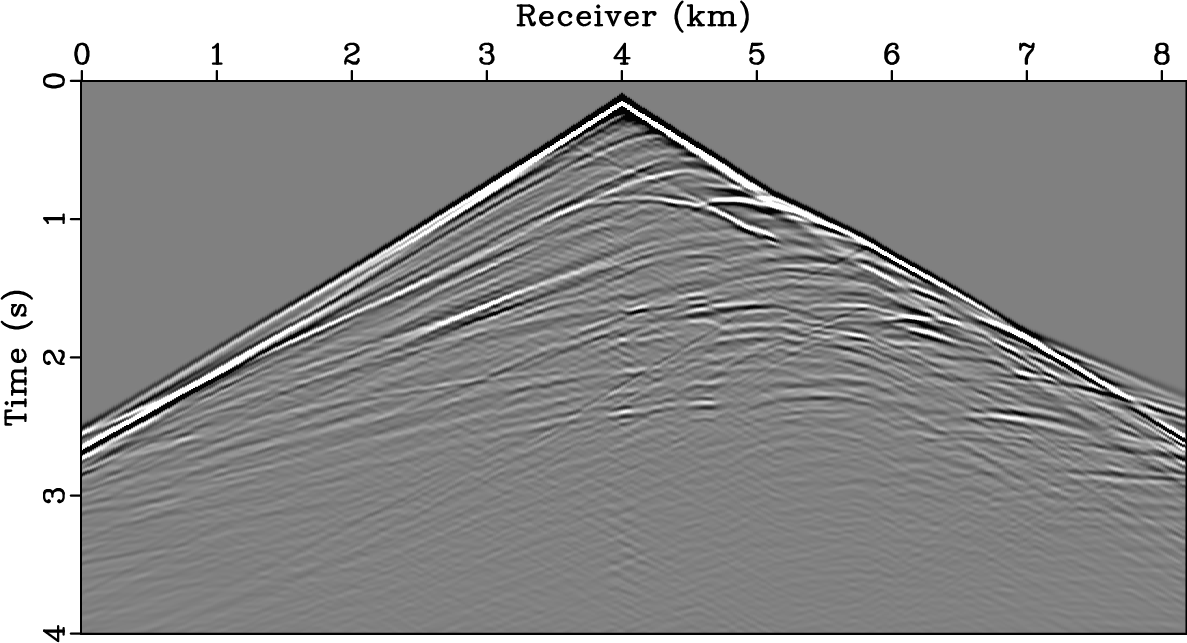

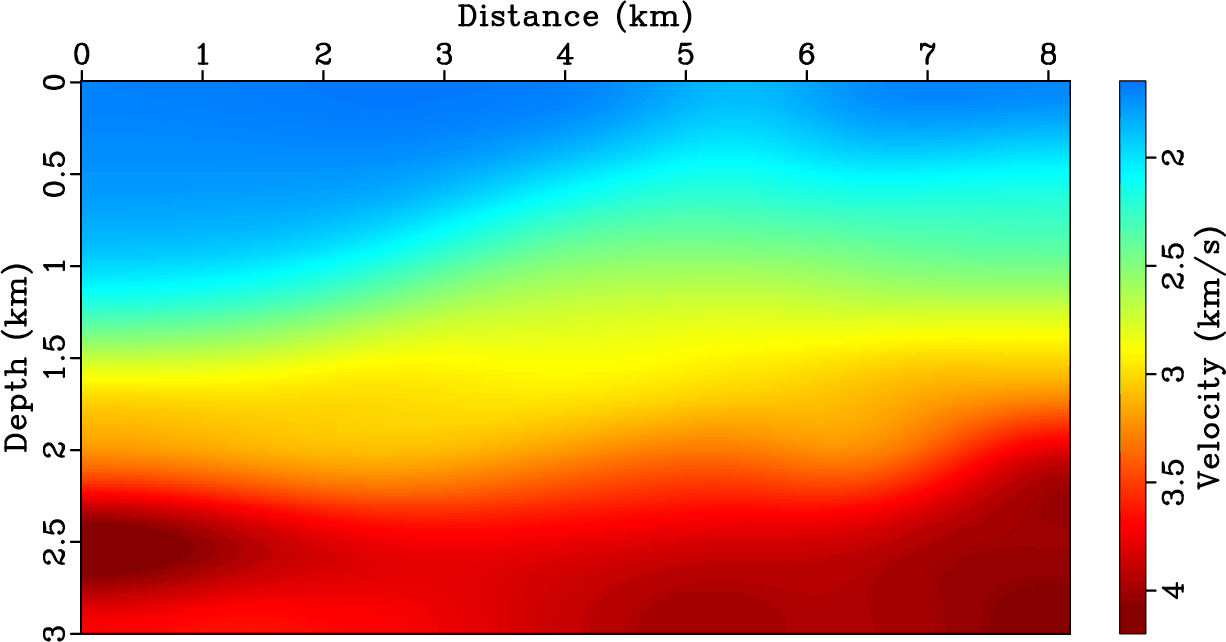

(a) Initial model and (b) one shot record for true model with $ x_s=4 km$ .
[pdf] [pdf] [png] [png] [scons]

We use the classic 2D Marmousi model (Bourgeois et al., 1991) to test the effectiveness of the proposed method. The model was first subsampled from $ 2301\times751$ cells at 4 m cell size to $ 512 \times 188$ cells at 16 m cell size, as shown in Figure 1a. Figure 2a shows the initial model for FWI, obtained by smoothing the target model. A fixed-spread surface acquisition is used, involving 32 sources located at every 240 m. A Ricker wavelet with center frequency of 13 Hz is used to generate the synthetic data. Figure 2b shows a shot record with source location at 4 km. We perform frequency-domain FWI using the fast Helmholtz solver (Li et al., 2014). We used 8 frequencies ranging from 4 to 11 Hz and carried out 10 iterations for each frequency. We perform two tests: one with encoded data and the other one with noisy data.
